1. Performance and Characteristics
Purpose: This equipment is suitable for emulsifying cream or cosmetic product in pharmaceutical , cosmetics, foodstuff and chemical industry.
Summarize: The TRZRJ Series Vacuum emulsifier has done the improvement bases on the technology which imported from German and it is especially useful in cosmetics and ointment product Industry. This equipment is mainly consist of emulsified tank , tank to storage oil based material, tank to storage water based material, vacuum system, hydraulic system, and electric controller. This equipment has following features: easy operation, compact structure, stable performance, good homogenization effect, high production benefit, convenient cleaning and maintenance , high automatic control .
2. Features
- The material of contacted part is SUS316L stainless steel, inside and outside of the equipment are with mirror polishing and get to GMP standard.
- All pipelines and parameter are controlled automatically. And the electric appliance which are imported from foreign country ,like Siemens ,Schneider and so on.
- Emulsifying tank is with CIP cleaning system, it make the cleaning to be easy and effective.
- Emulsifying tank adopts tertiary agitating system, and during the emulsification ,the whole processing is under a vacuum environment, so it not only can eliminate spume which created in the emulsification processing ,but also can avoid the unnecessary pollution.
- The homogenizer adopts the most advanced technology, it can get a ideal emulsifying effect. The speed of high emulsification is 0-3500r/min, and the speed of low mixing is 0-65r/min.
3. Main Technical Parameters
| Technical Parameters | |
| Main Mixing Tank | Total Volume:380L, Working Volume: 300L | |
| Pressure:-0.1Mpa in pot, 0.1Mpa in Jacket | |
| Temperature:≤105℃ | |
| Pretreatment Pot | Oil pot volume: 150L, Water pot volume: 180L | |
| Working Pressure: 0.1Mpa | |
| Temperature: ≤105℃ |
| Agitator: Turbine, Power: 0.75kw | |
| Main Mixer | Speed:0-60 rpm, Power:1.5kw | |
| High shear mixer | Power:5.5kw, vacuum degree:- 0.0947 Mpa | |
| Vacuum Pump | Model: 2B V2016 | |
| Power 1.5Kw | |

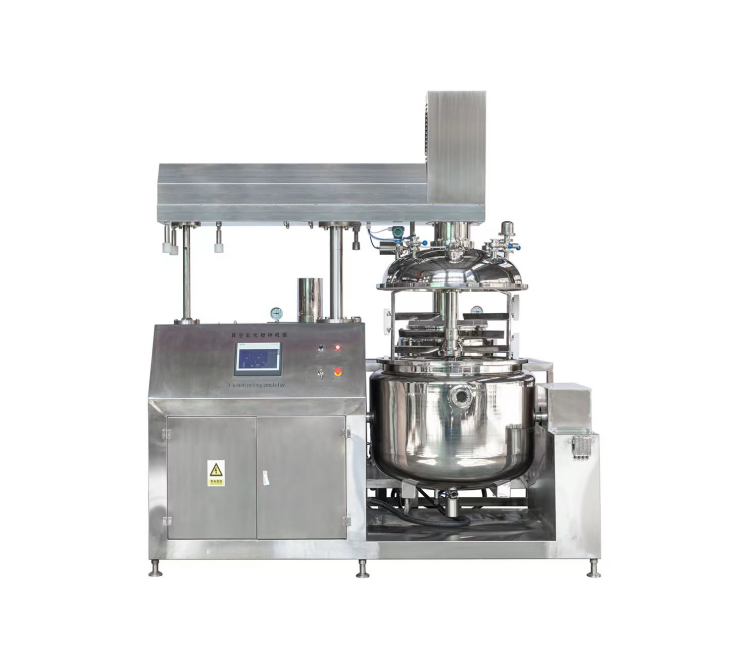

4.Machine details
5. Samples
6. Any questions about the machine, please contact with me.
1.what's the delivery time?
it's about 30days
2.how many container request for this machine
suggest ship by LCL.
3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.
4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.
5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
